ACM100-200 & ACM250-315

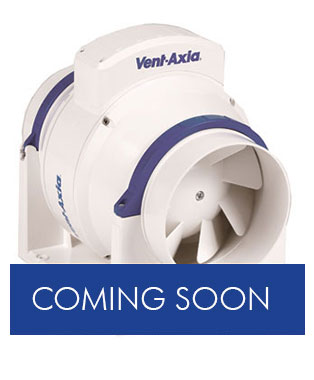

ACM 100-200

  • Designed and manufactured in UK
  • Three speed motor
  • Timer versions available
  • Removable motor core assembly
  • Rotating motor chassis assembly
  • IP44 rated
  • Aesthetically pleasing with wipe clean polymer casing
  • Sound data from independent testing
  • Running speed selected on installation

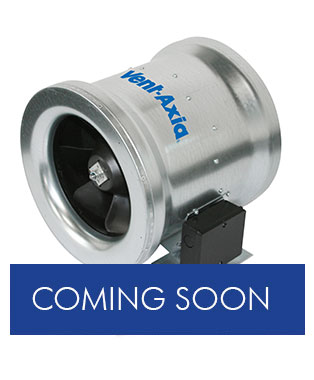

ACM 250-315

  • Available in two sizes
  • Simple installation
  • Optimise fan performance by using an approved Vent-Axia controller
  • Diagonal impeller with stator
  • Galvanized metal housing
  • Integrated thermal switch
  • Includes a mounting bracket
  • Designed to meet IP54

Please contact us for more information about this product:

Ducted Ventilation

A complete range of energy efficient Mixed Flow In-Line fans that are now quieter than any other product on the market. ACM is now in a range of six products in the range which have been designed for use with rigid and flexible ducting. In Line Mixed Flow fans offer two and half times the pressure of conventional axial fans, are dimensionally more compact making them ideal for many ducted applications. The impeller blade design with guide vanes provides optimum pressure characteristics and simple connectivity and quieter more efficient running provides the complete solution. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions and can be mounted to meet its optimum performance.





PRODUCT SPECIFICATION:

Vent Axia has designed a complete range of energy efficient Mixed Flow In-Line fans that are now quieter, offer two and half times the pressure of conventional axial fans and are dimensionally more compact making them ideal for many ducted applications. The ACM Mixed Flow In-Line fan can operate in both horizontal and vertical positions.

Motor

All units have have three speed motors, speed selectable on installation and are fitted with Standard Thermal Overload Protection (S.T.O.P.). Designed for ambient temperatures up to +50°C. All sizes with capacitor run motors. All sizes are Class II appliances. Supply voltage 220-240V/1/50Hz.

Installation

These units have a separate footplate for simple location mounting and detachable spigots for simple connection to ducting. The motor body chassis rotates to provide connection in acute spaces. Cleaning the product has also become simple as all parts can be removed without removing the ducting.

Controller

For optimum variable speed performance use a Vent-Axia 1.5 Amp electronic controller. Surface mounted providing variable speed control with an On/Off/sensor slider with indication light. There is an adjustable minimum speed setting. The controller has electrical connections for use with suitable external sensors. Cannot be used with timer models.



OSP SKU(s):
17104010 17104020 17105010 17105020 17106010 17106020 17108010 17108020 17110010 17112010 17108020A
Image of ACM100
ACM100

ACM In-line Mixed Flow Fans - ACM100 with 100mm diameter spigots

Stock Ref. No 17104010
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM100T
ACM100T

ACM In-line Mixed Flow Fans - ACM100T with 100mm diameter spigots and over run timer

Stock Ref. No 17104020
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM125
ACM125

ACM In-line Mixed Flow Fans - ACM125 with 125mm diameter spigots

Stock Ref. No 17105010
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM125T
ACM125T
Stock Ref. No 17105020
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM150
ACM150

ACM In-line Mixed Flow Fans - ACM150 with 150mm diameter spigots

Stock Ref. No 17106010
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM150T
ACM150T

ACM In-line Mixed Flow Fans - ACM150 with 150mm diameter spigots and over run timer

Stock Ref. No 17106020
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM200
ACM200

ACM In-line Mixed Flow Fans - ACM200 with 200mm diameter spigots

Stock Ref. No 17108010
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM200T
ACM200T

ACM In-line Mixed Flow Fans - ACM200T with 200mm diameter spigots

Stock Ref. No 17108020
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM250
ACM250

ACM In-line Mixed Flow Fans - ACM250 with 250mm diameter spigots

Stock Ref. No 17110010
Please contact your relevant International Distributor for pricing and availability details.
Image of ACM315
ACM315

ACM In-line Mixed Flow Fans - ACM315 with 315mm diameter spigots

Stock Ref. No 17112010
Please contact your relevant International Distributor for pricing and availability details.
Image of 5 Step Auto Transformer - 3 Amp Single Phase
5 Step Auto Transformer - 3 Amp Single Phase

Used in conjunction with speed controllable fans to provide 5 stepped speed without electronic motor ‘hum’. Several fans can be connected to one transformer provided their combined load does not exceed the controller rating. Rotary switch giving On/Off and five speeds, neon indicator Input Voltage 240V/1PH/50Hz, Max 3 Amps Output voltages at 240V/1PH/50Hz 0, 90, 115, 140, 175, 240 volts. Enclosures are protected to IP54 Dimension, 135mm x 170mm x 117mm (width x height x depth) Weight 4.0 Kg

Stock Ref. No 10314103
Please contact your relevant International Distributor for pricing and availability details.
