HeatTrans Systems

  • Transfer excess heat throughout your home.
  • Prevents build up of un-utilised heat at ceiling level.
  • Promotes healthier living environment.
  • Acoustic insulated duct allows for maximum heat retention and minimal air transfer noise.
  • Thermostatically controlled for maximum comfort.
  • Adjustable diffuser for added temperture control.

Please contact us for more information about this product:

HEATTRANS systems are designed to utilise your excess heat by transferring it from your lounge or heat source room, and distributing it to other rooms in your home.

If your lounge is warm & comfortable but the rest of the house remains cold, then this is the system you need! By transferring the excess heat you can efficiently use that warmth to reduce the chill in bedrooms, creating a drier, more comfortable environment throughout the home.

The only system on the market to include acoustic insulation ducting, HeatTrans achieves maximum heat retention with minimum air transfer noise.

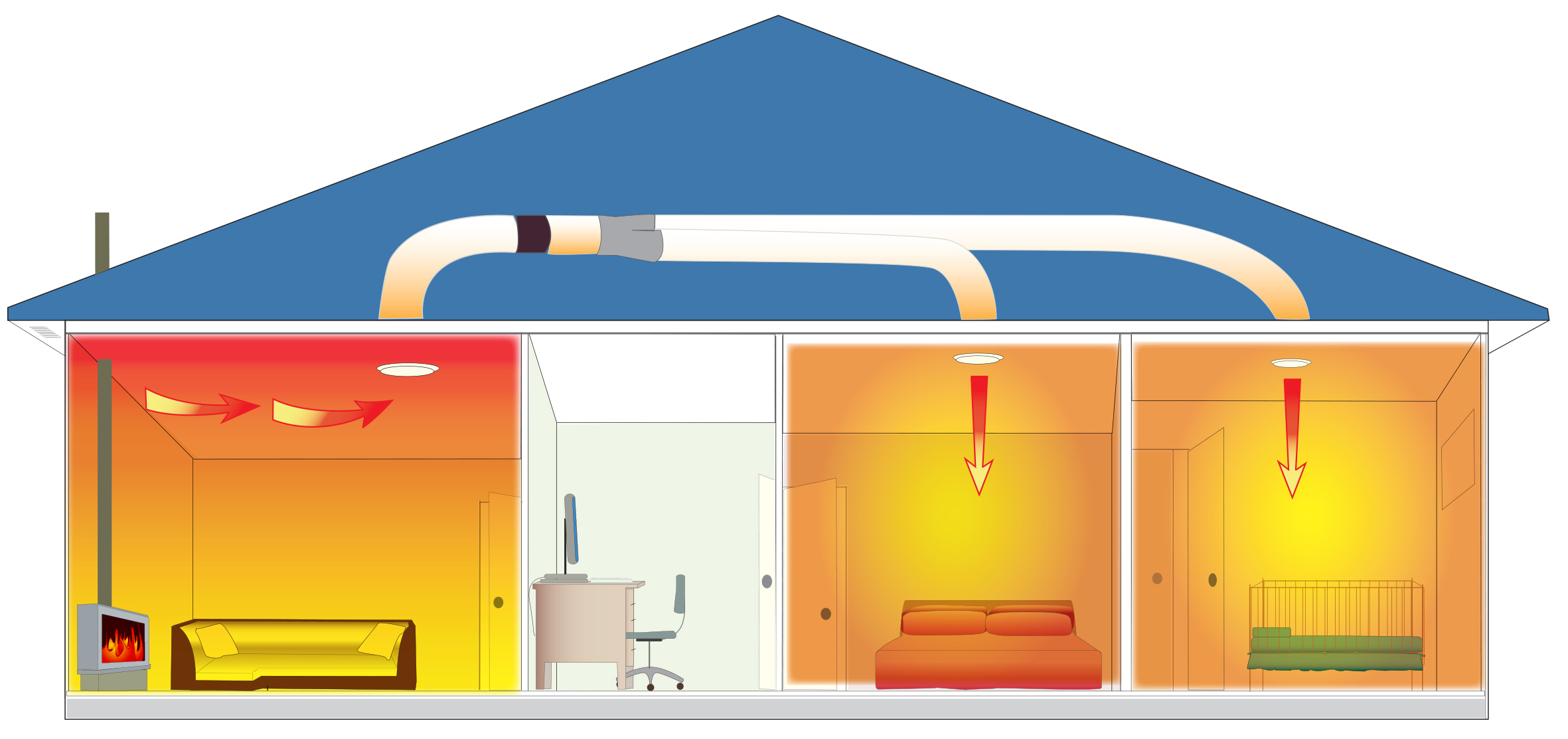

THE 3 STEP PROCESS

  1.  Excess heat from your heat source rises to ceiling level where it is trapped.  This excess heat can reach temperatures of 30-35ºC.
  2.  This excess heat is drawn up using a high quality fan and its warmth is effectively transferred to other rooms via the insulated ducting.
  3.  Air movement occurs from the bedrooms back to the lounge creating re-circulation of warmer, drier air throughout the home.  This can also make your home healthier by helping to reduce mould and mildrew.
Image of One Room Kit:
One Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 150mm High performance axial flow fan
  • 1 x 3 metres - 150mm Thermal acoustic duct
  • 1 x 3 metres - 150mm Insulated duct
  • 1 x 150mm Round inlet grille
  • 1 x 150mm Adjustable round outlet diffuser
  • 2 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0325
Please contact your relevant International Distributor for pricing and availability details.
Image of Two Room Kit:
Two Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 150mm High performance 3 speed fan
  • 2 x 3 metres - 150mm Thermal acoustic duct
  • 2 x 3 metres - 150mm Insulated duct
  • 1 x 150mm Y-Branch
  • 1 x 150mm Round inlet grille
  • 2 x 150mm Adjustable round outlet diffuser
  • 3 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0337
Please contact your relevant International Distributor for pricing and availability details.
Image of Three Room Kit:
Three Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 200mm High performance 3 speed fan
  • 3 x 3 metres - 150mm Acoustic insulated duct
  • 2 x 3 metres - 200mm Insulated duct
  • 1 x 200/150/150/150m Double branch take-off
  • 1 x 200mm Round inlet grille
  • 3 x 150mm Adjustable round outlet diffusers
  • 2 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0338
Please contact your relevant International Distributor for pricing and availability details.
Image of Optional Extra: Through Wall Fan
Optional Extra: Through Wall Fan

SVARA - App Controlled Smart Fan with ‘HeatTransfer’ function

The Vent-Axia Svara fan is also available for simple applications where it is desirable to move heat from one room to another through the wall.

Ideal for apartments or where limited ceiling space is available.

• Ideal where limited space or access to roof cavity prevents use of ducted HeatTrans system

• Inbuilt thermostat and speed settings for customised settings control

• Prevents excessive heat build-up at location of main heat source

• Quietly spreads heat to adjoining rooms or other areas of your home

• Ultra-silent, low energy, long life motor

• Choice of ducting and grilles available separately

Stock Ref. No 409802
Please contact your relevant International Distributor for pricing and availability details.



Raadpleeg de tab Downloads voor technische informatie





ESTIMATED RUNNING COSTS

Calculate estimated running costs for this product using the tool below.
For average costs, leave the default values in place or enter your own figures in the boxes to recalculate.
Where a product has multi speeds, a typical installation has been used for the below calculations.


pence
(Your current electricity cost in pence per hour. This will be listed on your electric bill)
hours
(The average number of hours per day fan to run in Trickle mode)
hours
(The average number of hours per day fan to run in Boost mode)

Based on the inputted figures, estimated running costs would be:

Overview

HEATTRANS systems are designed to utilise your excess heat by transferring it from your lounge or heat source room, and distributing it to other rooms in your home.

If your lounge is warm & comfortable but the rest of the house remains cold, then this is the system you need! By transferring the excess heat you can efficiently use that warmth to reduce the chill in bedrooms, creating a drier, more comfortable environment throughout the home.

The only system on the market to include acoustic insulation ducting, HeatTrans achieves maximum heat retention with minimum air transfer noise.



THE 3 STEP PROCESS

  1.  Excess heat from your heat source rises to ceiling level where it is trapped.  This excess heat can reach temperatures of 30-35ºC.
  2.  This excess heat is drawn up using a high quality fan and its warmth is effectively transferred to other rooms via the insulated ducting.
  3.  Air movement occurs from the bedrooms back to the lounge creating re-circulation of warmer, drier air throughout the home.  This can also make your home healthier by helping to reduce mould and mildrew.

Technical

Models

Image of One Room Kit:
One Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 150mm High performance axial flow fan
  • 1 x 3 metres - 150mm Thermal acoustic duct
  • 1 x 3 metres - 150mm Insulated duct
  • 1 x 150mm Round inlet grille
  • 1 x 150mm Adjustable round outlet diffuser
  • 2 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0325
Please contact your relevant International Distributor for pricing and availability details.
Image of Two Room Kit:
Two Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 150mm High performance 3 speed fan
  • 2 x 3 metres - 150mm Thermal acoustic duct
  • 2 x 3 metres - 150mm Insulated duct
  • 1 x 150mm Y-Branch
  • 1 x 150mm Round inlet grille
  • 2 x 150mm Adjustable round outlet diffuser
  • 3 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0337
Please contact your relevant International Distributor for pricing and availability details.
Image of Three Room Kit:
Three Room Kit:
  • 1 x Automated touch screen controller
  • 1 x 200mm High performance 3 speed fan
  • 3 x 3 metres - 150mm Acoustic insulated duct
  • 2 x 3 metres - 200mm Insulated duct
  • 1 x 200/150/150/150m Double branch take-off
  • 1 x 200mm Round inlet grille
  • 3 x 150mm Adjustable round outlet diffusers
  • 2 x 45mm x 5 metres Duct tape
Stock Ref. No FAN0338
Please contact your relevant International Distributor for pricing and availability details.

Accessories

Image of Optional Extra: Through Wall Fan
Optional Extra: Through Wall Fan

SVARA - App Controlled Smart Fan with ‘HeatTransfer’ function

The Vent-Axia Svara fan is also available for simple applications where it is desirable to move heat from one room to another through the wall.

Ideal for apartments or where limited ceiling space is available.

• Ideal where limited space or access to roof cavity prevents use of ducted HeatTrans system

• Inbuilt thermostat and speed settings for customised settings control

• Prevents excessive heat build-up at location of main heat source

• Quietly spreads heat to adjoining rooms or other areas of your home

• Ultra-silent, low energy, long life motor

• Choice of ducting and grilles available separately

Stock Ref. No 409802
Please contact your relevant International Distributor for pricing and availability details.
